產品概述

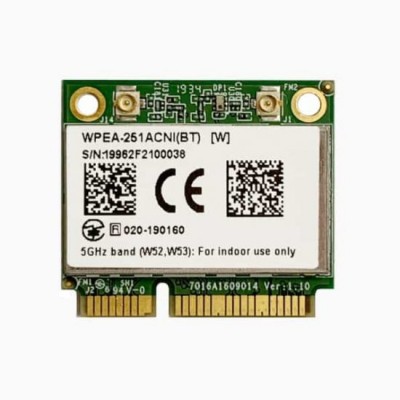

WPEA-251ACNI(BT) 是高性能 802.11ac/a/b/g/n 雙頻 2T2R 工業級 (-40°C ~85°C) Wi-Fi combo mini PCIe 模塊 (WiFi 5)，多輸入輸出 ( MU-MIMO） IEEE 802.11ac/a/b/g/n WLAN 標準，旨在提供 WLAN 和低能耗技術的集成。
WPEA-251ACNI(BT)支持 Windows 和 Linux 驅動程序解決方案。
WPEA-251ACNI(BT) 使用 QCA6174A-5 以及 Windows 和 Linux 驅動程序，為自動化/機器人AGV各種應用提供出色的解決方案。WPEA-251ACNI(BT) 是 2.4GHz+5GHz 的雙頻 AC 。N模式下載速度為300Mbps，AC模式下載速度為867Mbps。WPEA-251ACNI(BT) 集成了BT傳輸技術，用于短距離設備之間的語音和數據傳輸。
應用領域
- • 工業電腦
- • 車載電腦
- • 車載路由器
- • 戶外IPTV
- • 車載前裝
- • 無人機
- • 機器人（AGV）
- • 智能網關
參數特性
STANDARD
|
| WI-FI |
IEEE 802.11ac/a/b/g/n |
| Chipset |
Qualcomm Atheros QCA6174A-5 |
| Host Interface |
WLAN : PCIe |
RADIO
|
| Antenna |
2 x IPEX MHF1 connectors |
| Operating Frequency |
802.11ac/a/b/g/n ISM Band |
| 2.412GHz~2.484GHz
5.150GHz~5.850GHz
*Subject to local regulations
|
MODULATIONS
|
| 802.11b |
DSSS (DBPSK, DQPSK, CCK) |
| 802.11g |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11n |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY
|
| WiFi |
Power – TX (± 2dBm) |
Sensitivity – RX |
| 11b @11Mbps |
18dBm |
≤ -86dBm |
| 11g @ 54Mbps |
14.5dBm |
≤ -72dBm |
| 11gn HT20 @ MCS 7 |
14dBm |
≤ -68dBm |
| 11gn HT40 @ MCS 7 |
13.5dBm |
≤ -66dBm |
| 11a @ 54Mbps |
11.5dBm |
≤ -71dBm |
| 11an HT20 @ MCS 7 |
11dBm |
≤ -68dBm |
| 11an HT40 @ MCS 7 |
10dBm |
≤ -67dBm |
| 11ac VHT80 @ MCS 9 |
6.5dBm |
≤ -57dBm |
POWER CONSUMPTION
|
| Continue TX |
626mA |
| Continue RX |
286mA |
ENVIRONMENTAL
|
| Operating Voltage |
DC 3.3V |
| Temperature Range |
-40~ 85°C (Operating) |
-45 ~ 90°C (Storing) |
| Humidity(Non-Condensing) |
5 ~ 90% (Operating) |
5 ~ 90% (Storing) |
SIZE
|
| Dimension (MM) |
29.85mm(±0.3mm) x 26.65mm(±0.3mm) x 3.2mm(±0.3mm) |
| Weight |
4.5g |
SOFTWARE
|
| Driver |
Windows 7/8.1/10 |
| Linux (Open Source), Recommend Kernel v4.0+ |
| Security |
64/128-bits WEP, WPA, WPA2, WPA3, 802.1x |
Miscellaneous
|
| Warranty Period |
12 Month |
| HS Code |
8517620050 |
認證
 |
 |
 |
 |
|
|
| USA |
EU Region |
Japan |
Canada |
|
|
